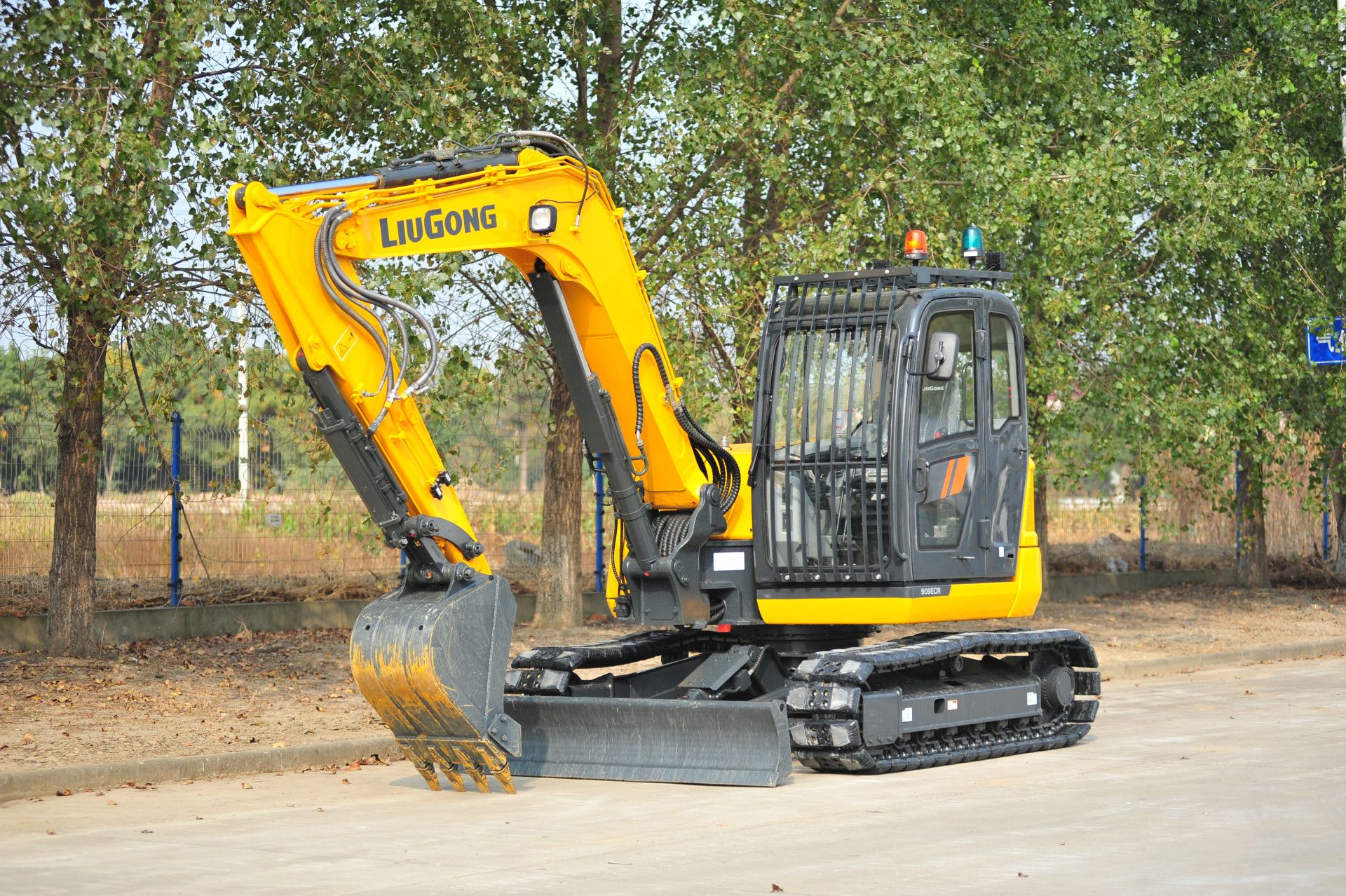

Excavator 909ECR
Prospekt LiuGong 909ECR.pdf| Weight of machine | 8 700 kg |
|---|---|
| Engine | Yanmar 4TNV98C, Tier 4F/EU Stage V |
| Power | 44 kW |
Working Range
| Boom | 3 375 mm | |
|---|---|---|
| Arm options | 1 650 mm | 2 100 mm |
| A: Max. Digging Reach | 6 847 mm | 7 264 mm |
| B: Max. Digging Reach on Ground | 6 651 mm | 7 082 mm |
| C: Max. Digging Depth | 4 093 mm | 4 540 mm |
| D: Max. Digging Depth, 2.44 m (8’) Level | 3 670 mm | 4 163 mm |
| E: Max. Vertical Wall Digging Depth | 3 043 mm | 3 963 mm |
| F: Max. Cutting Height | 6 724 mm | 7 016 mm |
| G: Max. Dumping Height | 4 725 mm | 5000 mm |
| H: Min. Front Swing Radius | 2 421 mm | 2 421 mm |
| Bucket Digging Force | 63 kN | 63 kN |
| Arm Digging Force | 43 kN | 37 kN |
Dimensions
| Boom |
3 375 mm |
|
|---|---|---|
| Arm options | 1 650 mm | 2 100 mm |
| A: Shipping Length | 6 200 mm | |
| B. Shipping Height – Top of Cab | 2 800 mm | |
| C. Track Gauge | 1 750 mm | |
| D. Undercarriage Width – with 450 mm Shoes | 2 200 mm | |
| E. Length to Center of Rollers | 2 230 mm | |
| F. Track Length | 2 845 mm | |
| G. Overall Width of Upper Structure | 2 200 mm | |
| H. Tail Swing Radius | 1 410 mm | |
| I. Counterweight Ground Clearance | 760 mm | |
| J. Overall Height of Cab | 2 800 mm | |
| K. Min. Ground Clearance | 360 mm | |
| L. Track Shoe Width | 450 mm | |
