Overall Weight 9 500 kg
Max. working height 22,2 m
Battery Lithium 48 V / 460 Ah

Max. working height 22,2 m
Max. platform height 20,2 m

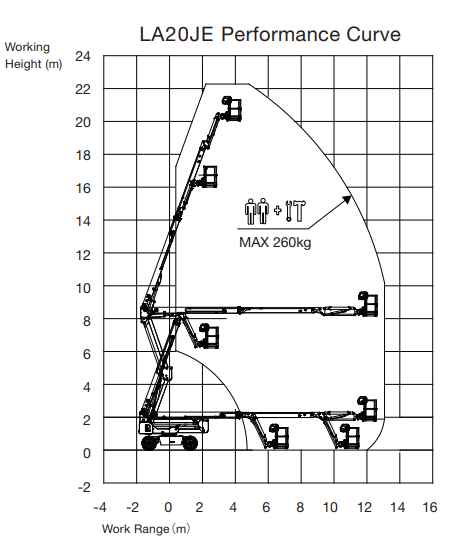

Max. Operating Range 13,2 m

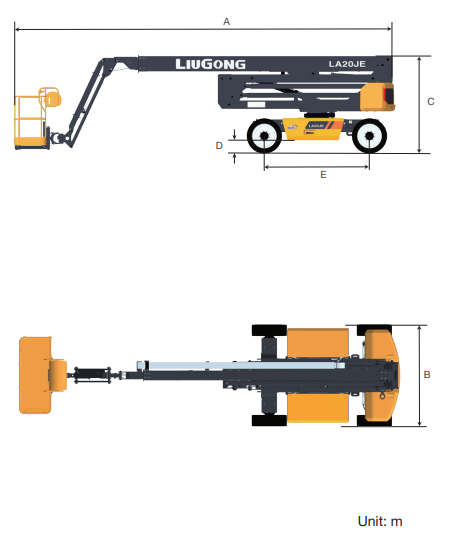

A. Overall Length /stowed/ 8,87 m
B. Overall Width /stowed/ 2,42 m
C. Overall Height /stowed/ 2,32 m
Overal Length /transport/ 8,87 m
Overall Width /transport/ 2,29 m
Overall Height /transport/ 2,2 m
Platform Size /Lx Wx H/ 1,8 x 0,76 x 1,1
D. Ground Clearance 0,31 m
E. Wheelbase 2,5 m
Turning radius (inside/Outside) 2,4 / 5,5 m
Tyres 33x12-20 (Solid off-road tyre)
Maximum crossing height 8,3 m

Safe and Reliable

  • High quality tilt and weight sensor, for safe and reliable operation;
  • Modern electronic control system to provide security and safety;
  • The protection level of components of the whole machine is above IP65

Intelligent and efficient

  • The turntable rotation 360° continuously with compact tail, suitable for narrow space operation;
  • Combine calibration with intelligent and efficient system;
  • Oscillating axles as standard;
  • Four wheel strong AC electric drive, climbing capacity up to 45%, strong trafficability;
  • High-power charger, large-capacity power battery, fast charging, ultra-long endurance

Energy saving and comfort

  • Smooth descent on all booms;
  • Automatic deceleration at the action limit position, stable action, proportionate control;
  • ECU control ensures optimize battery usage.

Green and environmental protection

  • Pure electric power, low use and maintenance cost, high return on investment;
  • Green and environmental protection, no emission, low noise, meet indoor and outdoor working conditions.

Standard configuration

    Platform work lights · Working strobe lamp · Load Sensing System · Electro hydraulic proportional control · Automatic brake system · Tilt protection system · Telematics-BOX · Electric emergency descent system · Manual emergency descent system · Emergency stop system · Anti entrapment device · Remote fault diagnosis system · Overload protection · Efficient alarm warnings
